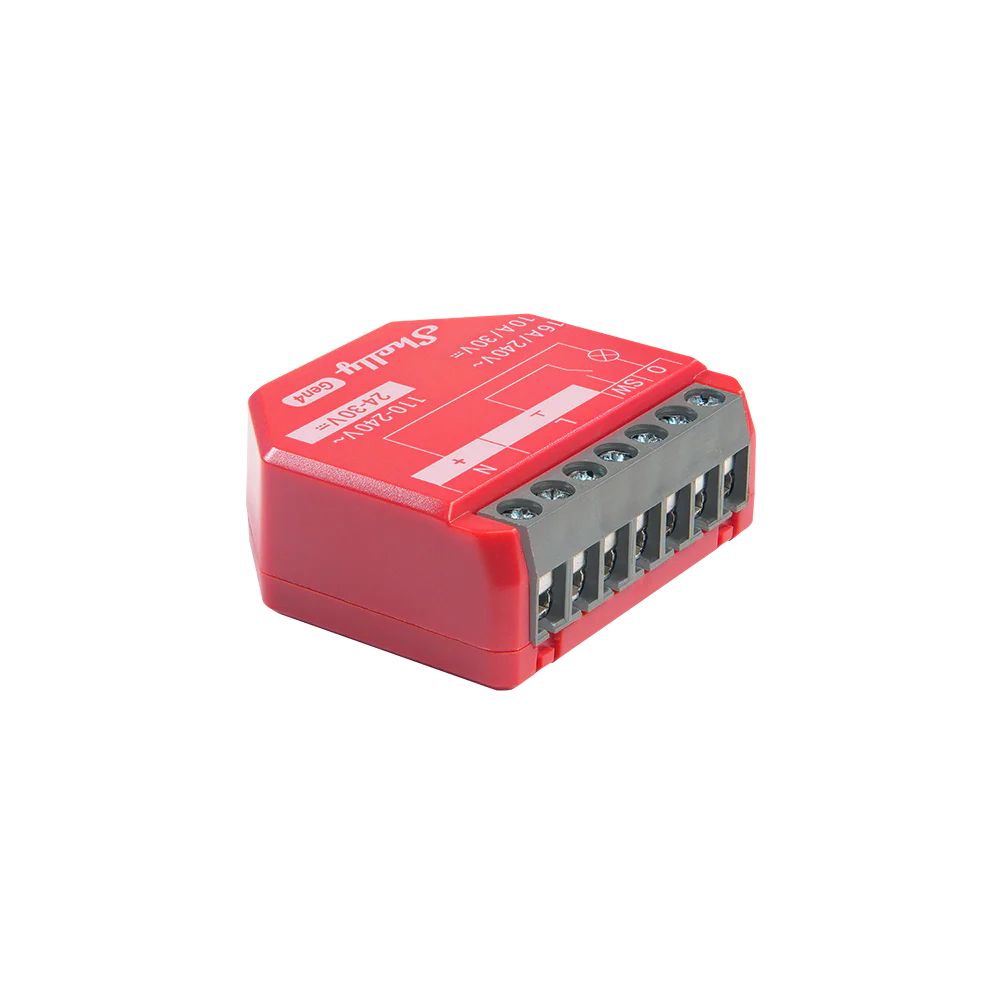

Shelly 1PM Gen4 multiprotocole (Wi-Fi + Bluetooth / Zigbee 3.0), avec compteur de puissance, compatible Matter

Quantity

Value

Physical

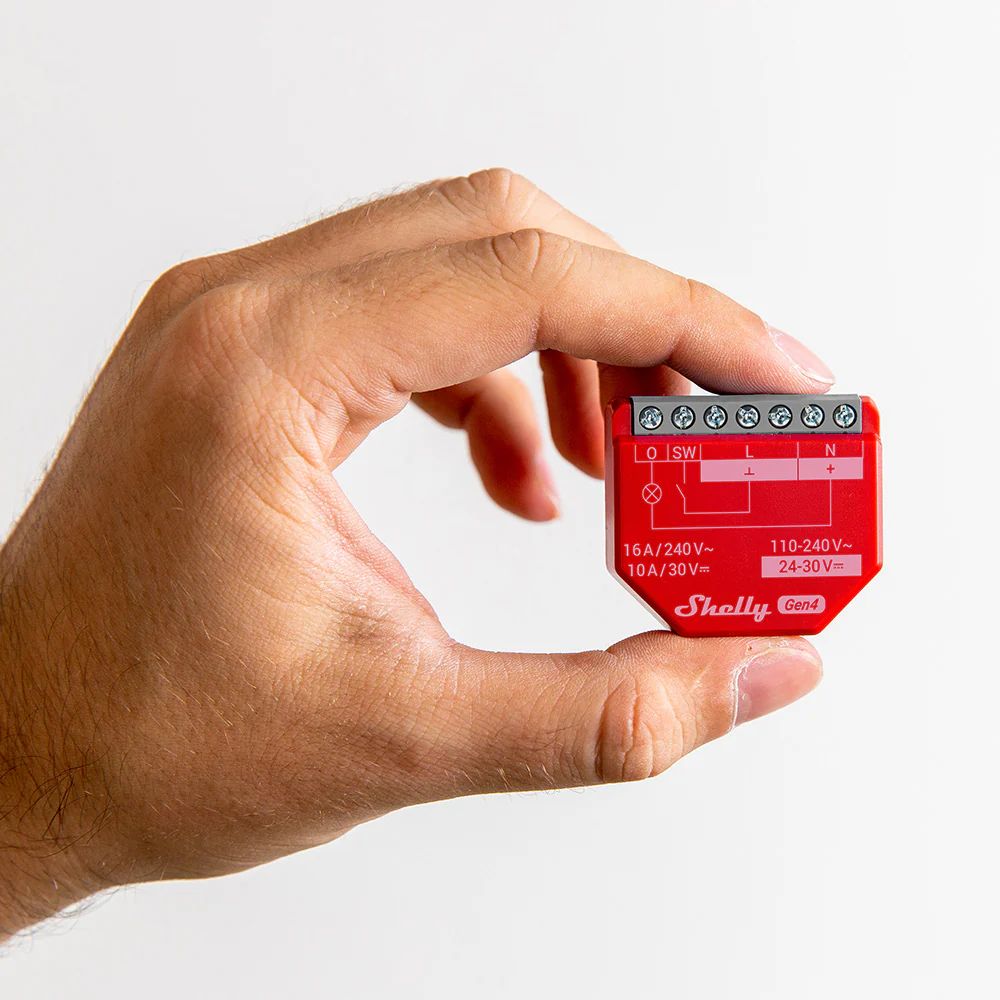

Size (HxWxD):

37x42x16 mm / 1.46x1.65x0.63 inch

Weight:

27 g / 0.95 oz

Screw terminals max torque:

0.4 Nm / 3.5 lbin

Conductor cross section:

0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length:

6 to 7 mm / 0.24 to 0.28 in

Mounting:

Wall console

Shell material:

Plastic

Shell color:

Red

Terminals color:

Grey (Mouse Grey)

Environmental

Ambient working temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity:

30 % to 70 % RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

• 110-240 V~
• 24-30 V⎓

Power consumption:

< 1 W

Neutral not needed:

No

External protection:

Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3)

Output circuits ratings

Max. switching voltage:

• 240 V~
• 30 V⎓

Max. switching current:

• 16A (240 V~)
• 10A (30 V⎓)

Sensors, meters

Voltmeter (AC):

Yes

Ammeter (AC):

Yes

Internal-temperature sensor:

Yes

Radio

Wi-Fi

Protocol:

802.11 b/g/n/ax

RF band:

2412 - 2472 МHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth

Protocol:

5.0

RF band:

2402 - 2480 MHz

Max. RF power:

< 4 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

Zigbee

Protocol:

802.15.4

Zigbee repeater:

Yes

RF bands:

2400 to 2483.5 MHz

Max. RF power:

< 20 dBm

Range:

Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors
(Depends on local conditions)

Microcontroller unit

CPU:

ESP-Shelly-C68F

Flash:

8MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes
